MH-14 Custom

The MH-14 is the entry point into the Low Light Innovations modular night vision ecosystem — a single-tube monocular night vision goggle engineered for users who need professional-grade capability without binocular pricing. Buy a monocular today, upgrade to a full MH-1 binocular tomorrow.

The housing is constructed from magnesium alloy and 7075 T6 aluminum, balancing structural durability against a class-leading 8.6 oz weight in its lightest fully built configuration. Every MH-14 is designed for field-level service and full integration with the MH-1 ecosystem.

Power runs on a single AA battery for 50+ hours of continuous runtime — widely available, no proprietary cells. Manual gain control is compatible with both 11769 and 3-pad tubes, allowing precise image optimization across tube types.

The MH-14 ships with dual IR illuminators — a low-power illuminator for tasks like map reading and administrative work, and a high-power spot for extended-range illumination. The housing is fully PVS-14 J-arm compatible and accepts any standard 18mm image intensifier including MX-10160 and MX-11769.

Select from Standard PVS-14, RPO Lightweight, or ACT 50° optics, and choose your tube tier — NVT Gen 2+, Elbit Gen 3, or L3 Gen 3 Filmless white phosphor — based on mission profile.

The MH-14 is designed to integrate seamlessly with the MH-1 Modular Bridge System (MBS), allowing users to upgrade to a binocular configuration without replacing the original investment.

Every MH-14 is designed and assembled in East Greenwich, Rhode Island, manufactured in the United States, and backed by a transferable lifetime warranty.

FEATURES

• Manual gain control compatible with 11769 or 3-pad tubes

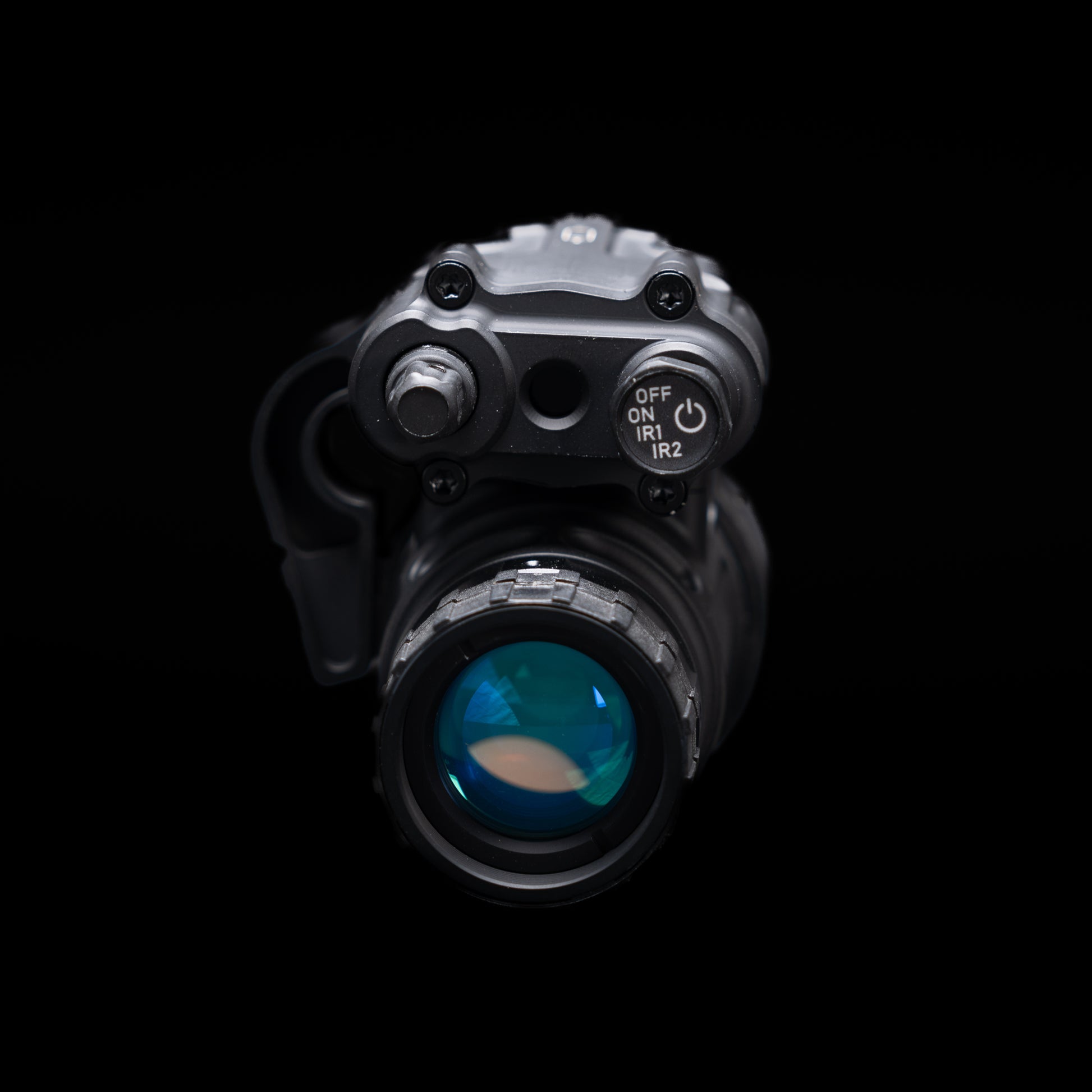

• Dual IR illumination (low-power illuminator + high-power spot)
• Single AA battery operation, 50+ hours continuous runtime
• PVS-14 J-arm compatible
• MH-1 ecosystem integration via MBS bridge — upgrades to binocular
• Field-serviceable

SPECIFICATIONS

• POWER SOURCE: SINGLE AA
• OPERATION TIME: 50+ HOURS
• MAGNIFICATION: 1× (ONE POWER)
• WEIGHT: 244g (8.6 OZ) IN LIGHTEST CONFIGURATION
• FIELD OF VIEW: 40° (50° WITH ACT 50° OPTICS)
• INTENSIFIER TUBES: COMPATIBLE WITH MX-10160 / MX-11769 (3-PAD AND 11769 TUBES)
• OPTICS: COMPATIBLE WITH PVS-14 EYEPIECE AND OBJECTIVE
• J-ARM: PVS-14 STANDARD
• ECOSYSTEM: COMPATIBLE WITH MH-1 MBS BRIDGE FOR BINOCULAR UPGRADE
• WARRANTY: TRANSFERABLE LIFETIME WARRANTY
• EXPORT: ITAR / DSP-5 REQUIRED FOR FULLY BUILT UNITS CONTAINING IMAGE INTENSIFIER TUBES

Made in the USA
