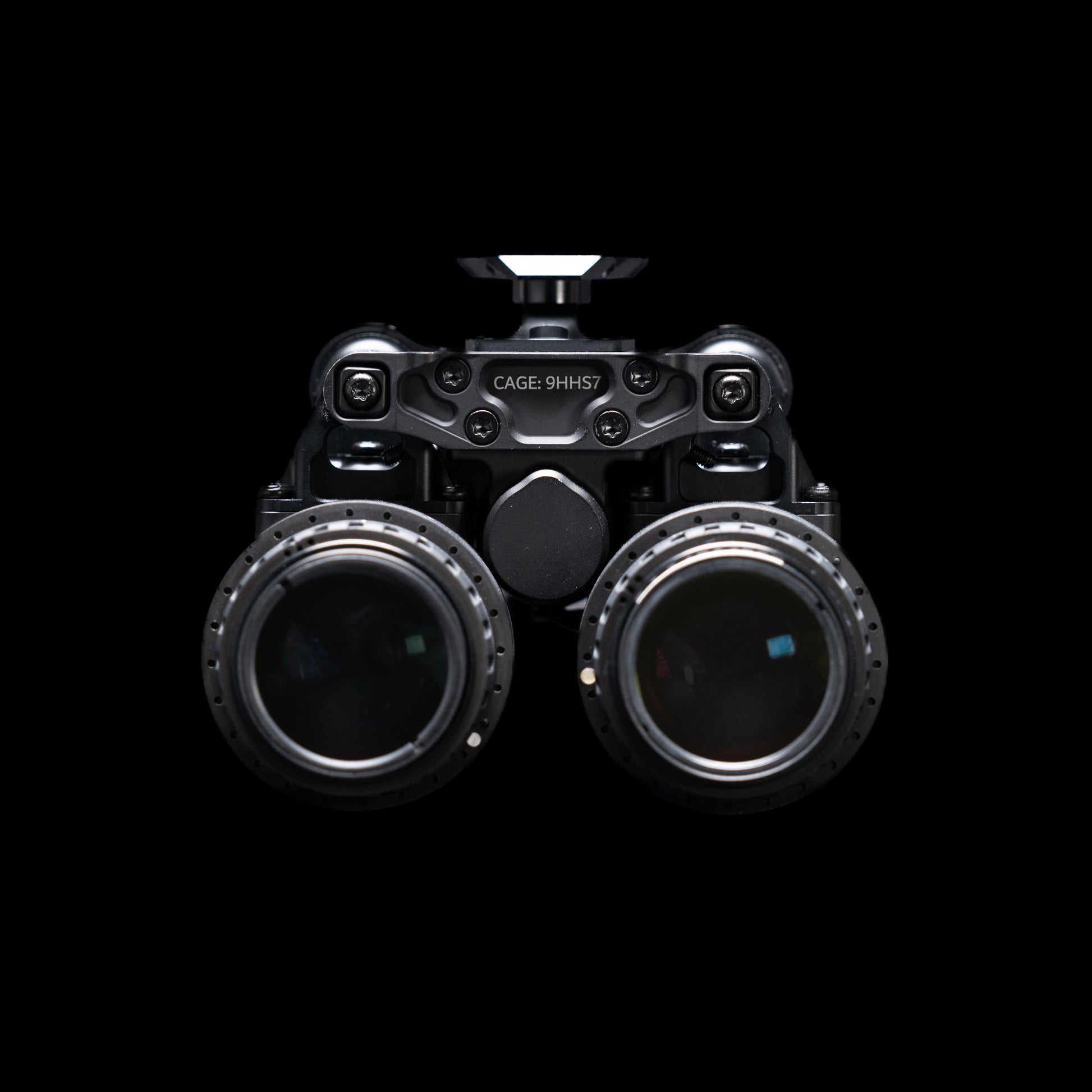

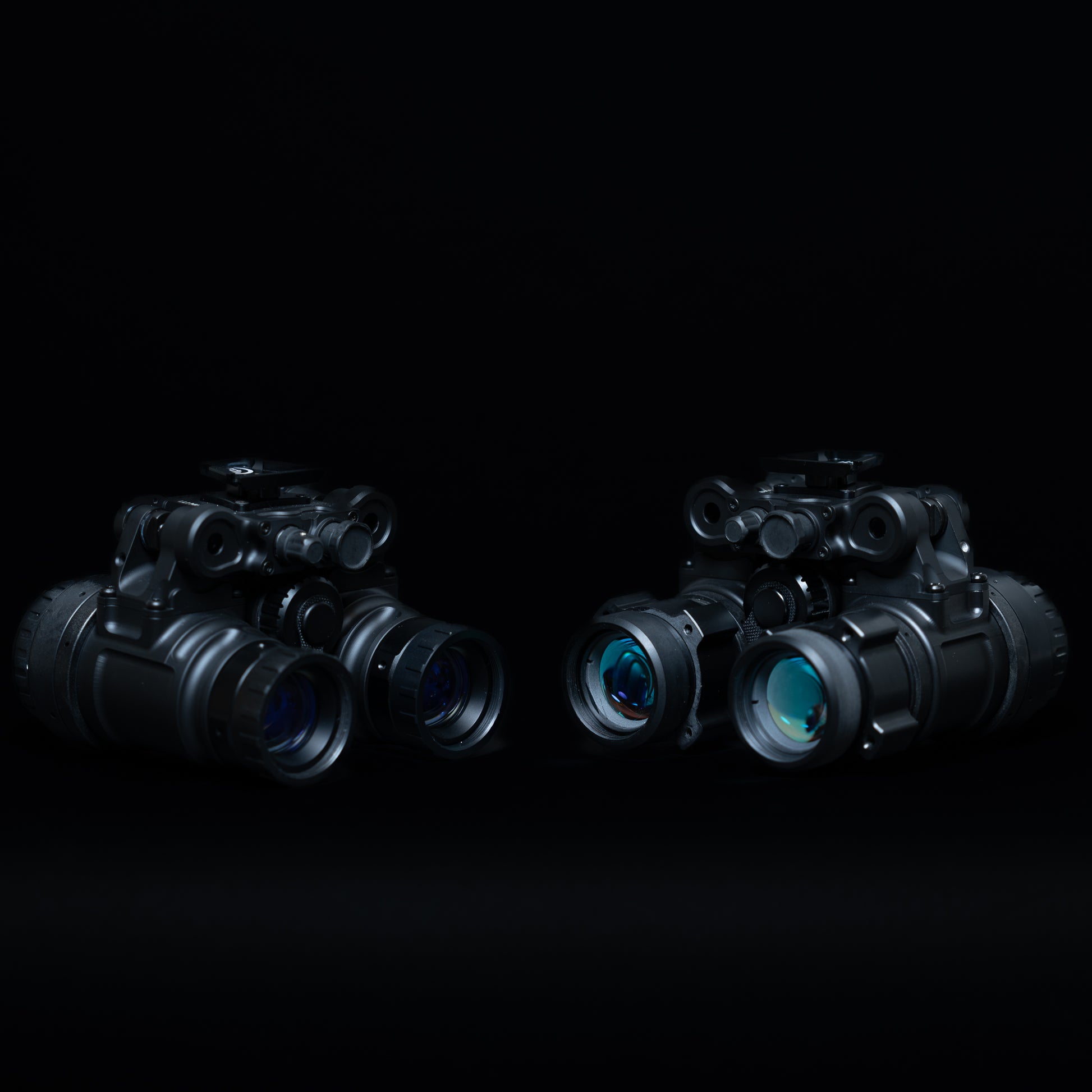

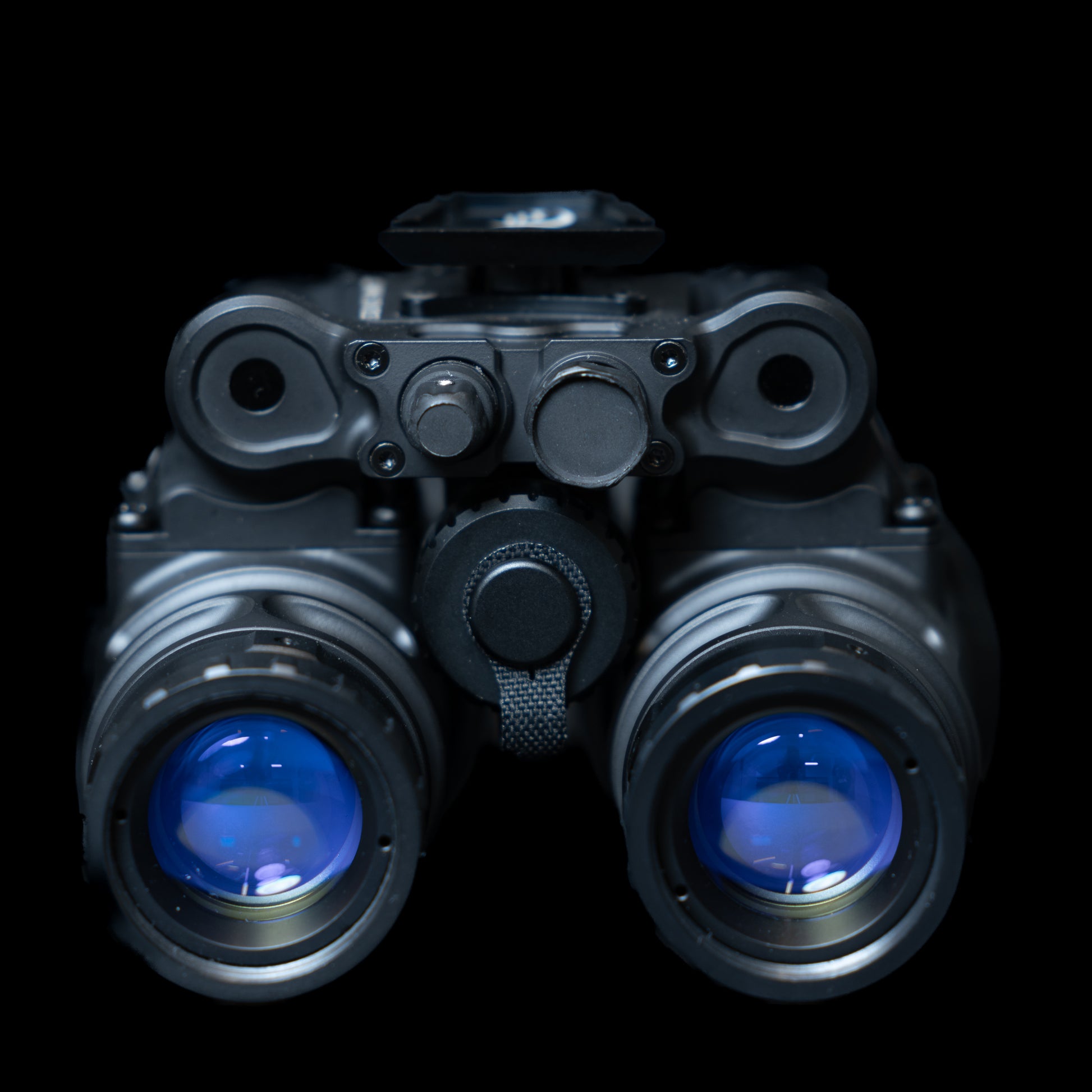

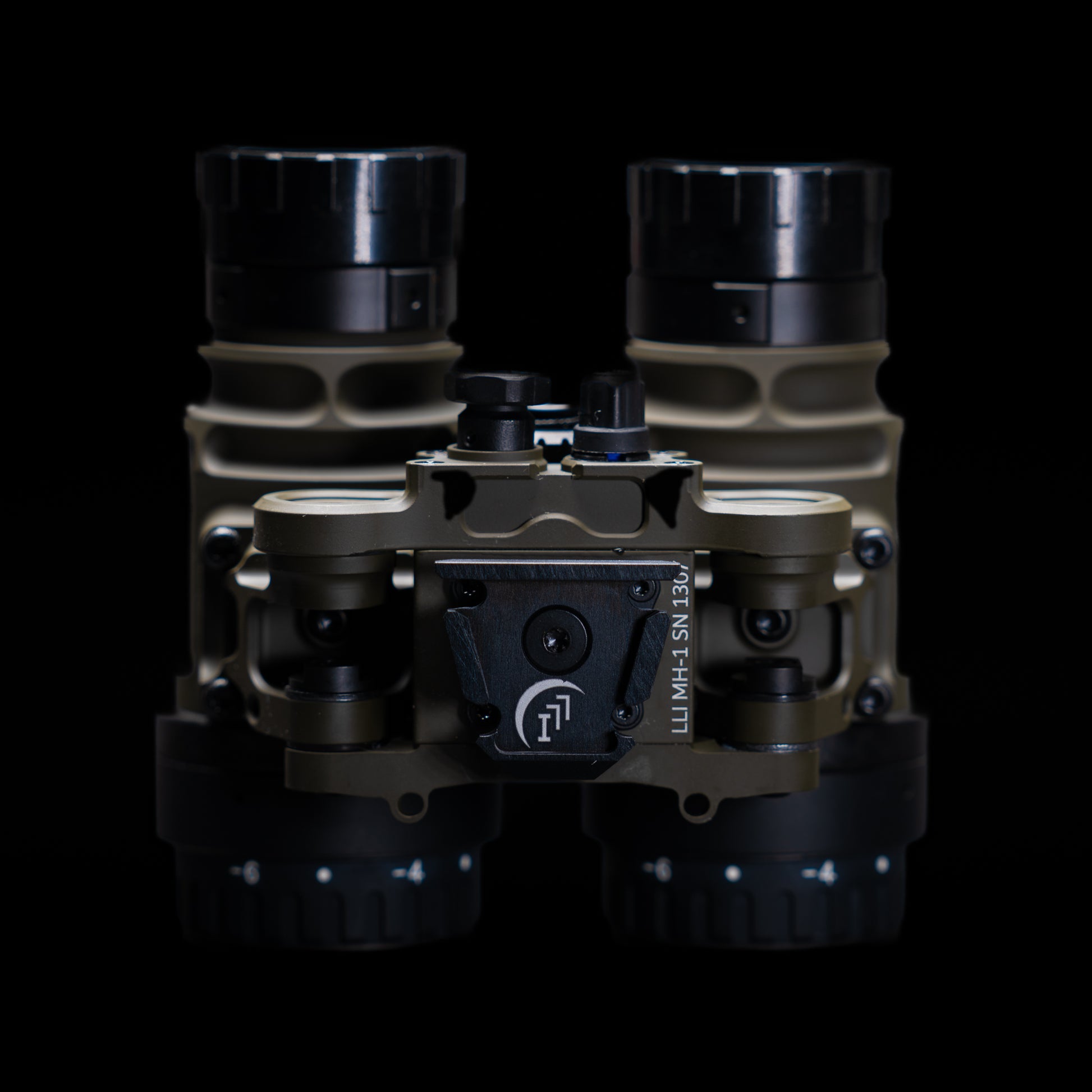

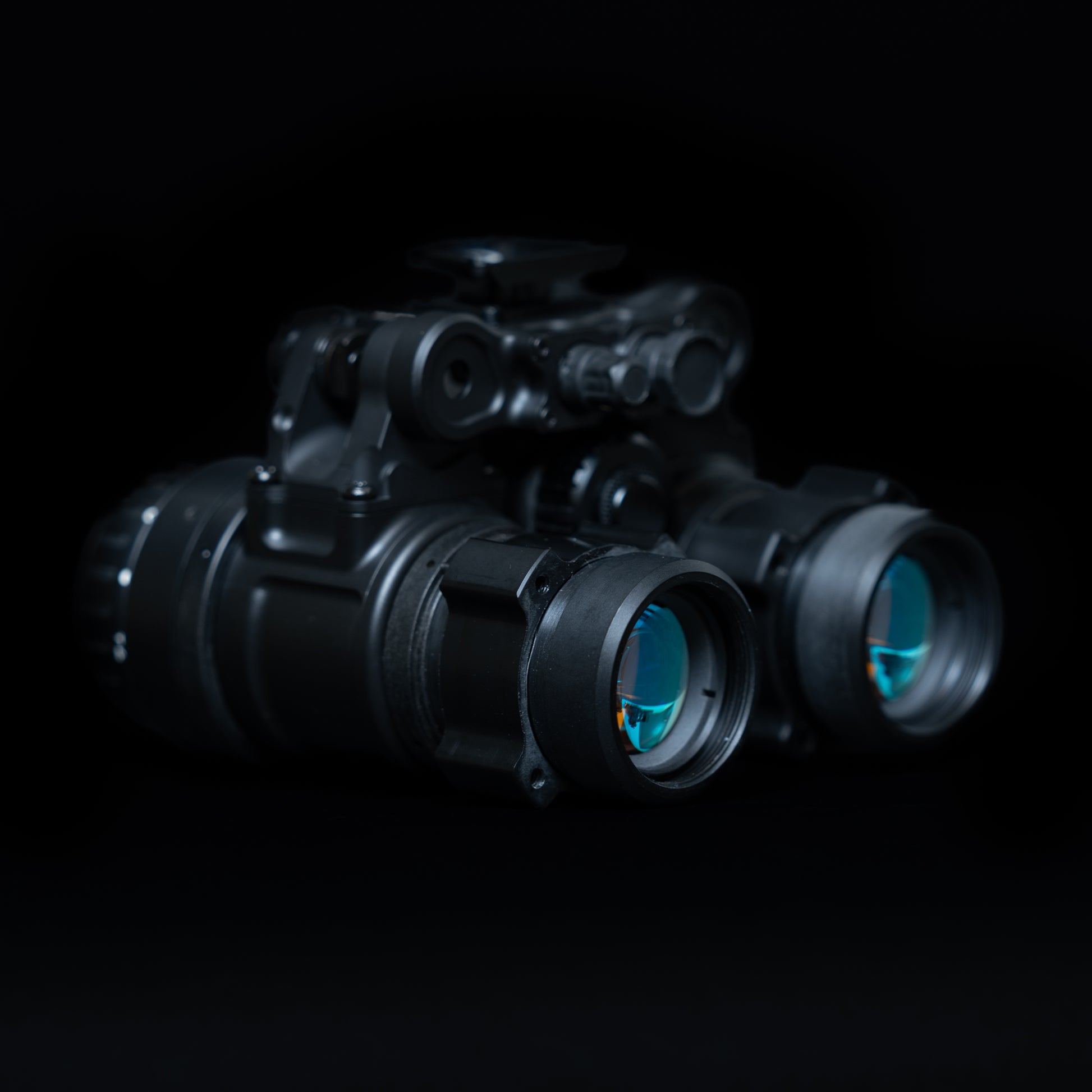

MH-1 (Housing Only)

The MH-1 (Housing Only) is the bare-housing option for builders sourcing their own image intensifier tubes and optics. The MH-1 is the flagship modular dual-tube binocular night vision platform from Low Light Innovations. One system, every mission.

The housing is machined from aerospace-grade magnesium and titanium alloys, balancing ruggedness against an industry-leading weight in its lightest fully built configuration. The MH-1 is field-serviceable, modular, and designed to grow with the user as mission profiles change.

Power is fully modular. The MH-1 accepts a Standard CR123 battery housing, the Universal Battery Compartment for AA / CR123 with Fischer external input, or a Stand Alone Port for external-only configurations.

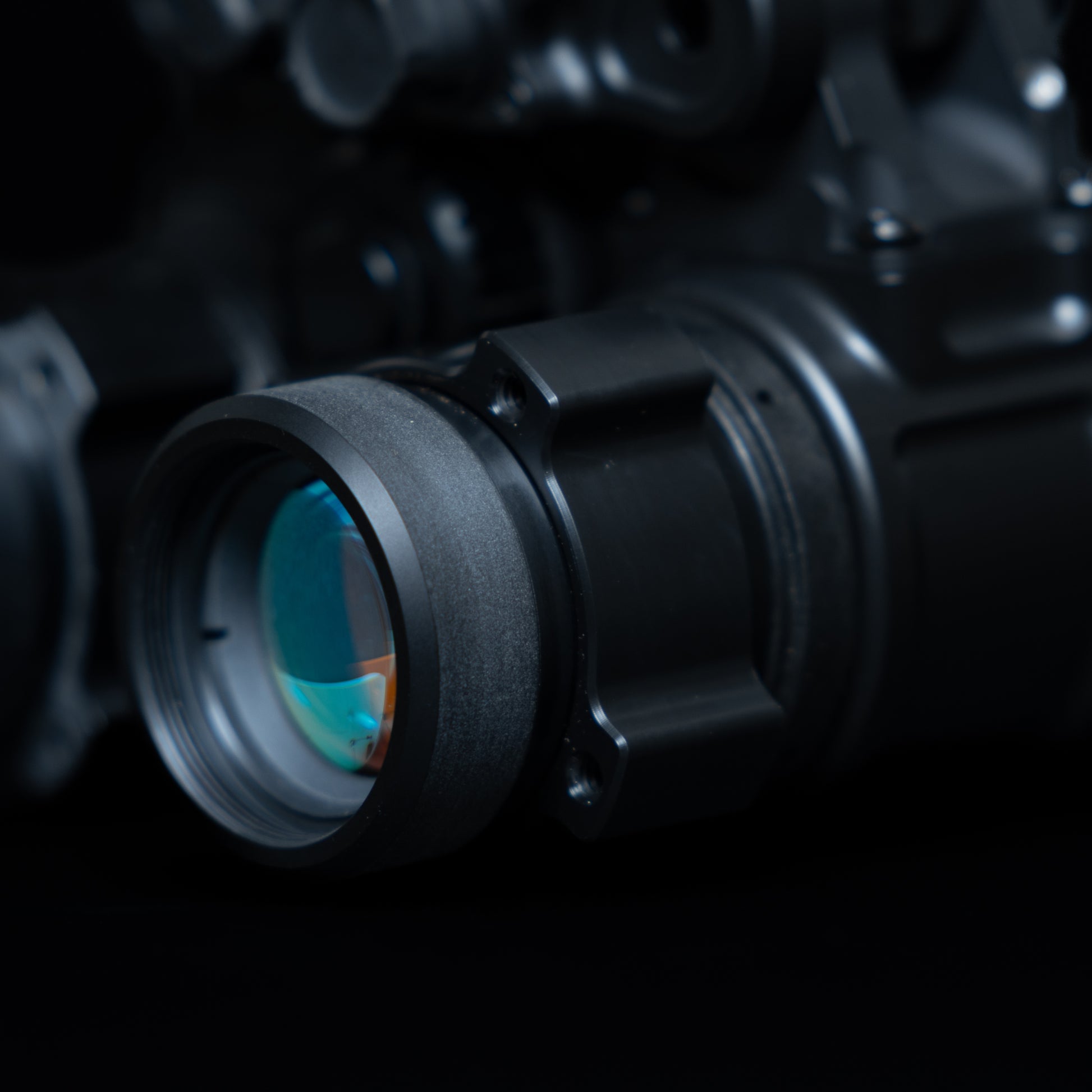

The optical system is PVS-14 compatible and the housing is fully tube agnostic, accepting any standard 18mm image intensifier including MX-10160 and MX-11769.

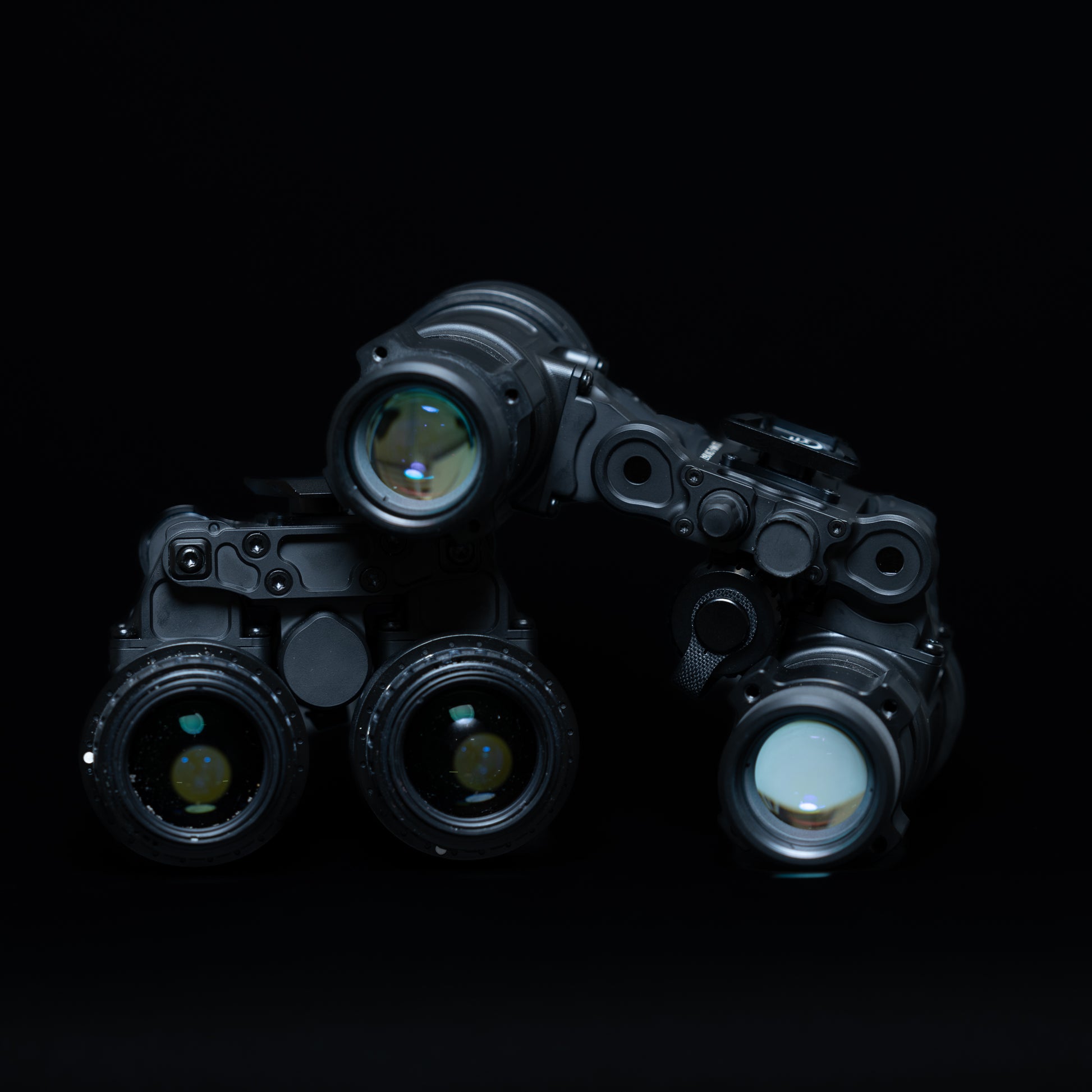

Manual gain control connects without soldering, keeping the tube's warranty intact and allowing field-level service. The Modular Bridge System (MBS) splits the MH-1 into two independent monoculars in minutes.

Available in Black, FDE, Ranger Green, or Grey. Every MH-1 is designed and assembled in East Greenwich, Rhode Island, manufactured in the United States, and backed by a transferable lifetime warranty.

FEATURES

• Rotational pod shutoff — each pod articulates and turns off independently
• Manual gain control via 4-pin plug-in (no soldering)
• Dual-power IR illumination
• IPD stops
• Modular Bridge System (MBS) — splits binocular into two monoculars
• Modular onboard power — CR123 / AA / external (Fischer)
• Modular external power input
• Modular mounting platforms — dovetail / ball detent
• Adjustable pod tension

SPECIFICATIONS

• POWER SOURCE: MODULAR (CR123 / AA / EXTERNAL)
• FOCUS RANGE: 9.8" TO INFINITY
• OPERATION TIME: APPROXIMATELY 25-90 HOURS (CONFIGURATION DEPENDENT)
• MAGNIFICATION: 1× (ONE POWER)
• FIELD OF VIEW: 40° (HOUSING)
• INTERPUPILLARY ADJUSTMENT: 51 TO 78MM
• DIOPTER ADJUSTMENT: -6 TO +2
• EYE RELIEF: 25MM
• WEIGHT: 434g (15.3 OZ) IN LIGHTEST CONFIGURATION
• WATER RESISTANCE: IP68 QUALIFIED
• INTENSIFIER TUBES: COMPATIBLE WITH MX-10160 / MX-11769 (NOT INCLUDED)
• OPTICS: COMPATIBLE WITH PVS-14 EYEPIECE AND OBJECTIVE (NOT INCLUDED)
• WARRANTY: TRANSFERABLE LIFETIME WARRANTY
• EXPORT: EAR-99 (HOUSING ONLY)

Made in the USA
